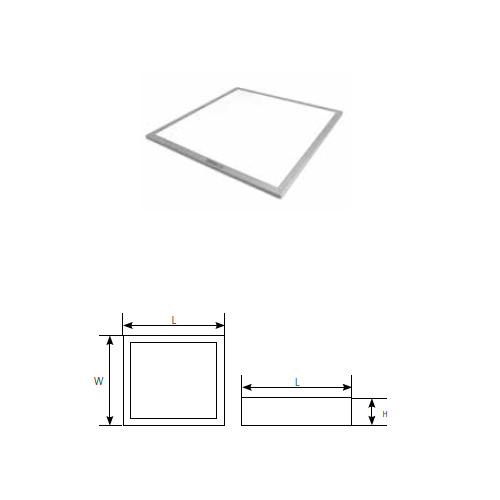

| Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions (mm) | Lamp Type | Voltage |
| LAXPNL18W | 18W |  |
1620 lm | 180° | 300 x 300, H 20 | Recessed | 220V |
| LAXPNL36W | 36W | |
3240 lm | 180° | 600 x 600, H 20 | Recessed | 220V |
| LAXPNL40W | 40W | |
3600 lm | 180° | 600 x 600, H 20 | Recessed | 220V |

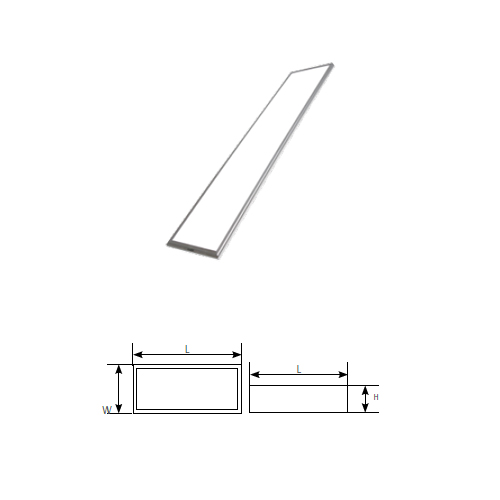

| Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions (mm) | Lamp Type | Voltage |
| LAXPNL1X4 | 36W | |
3240 lm | 180° | 300 x 1200, H 20 | Recessed | 220V |

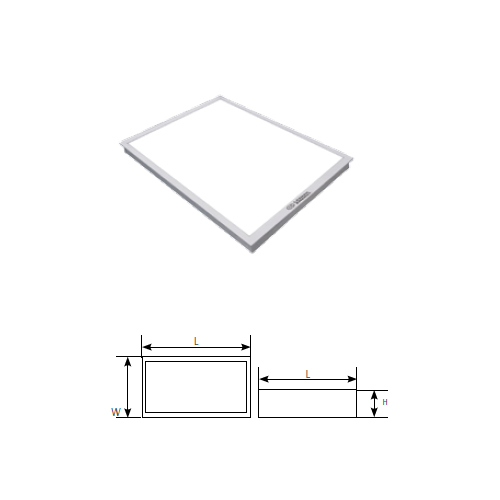

| Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions (mm) | Lamp Type | Voltage |
| LAXPNL1X2- BACKLITE | 18W | |
1800 lm | 180° | 300 x 600, H 50 | Recessed Clear/ Frosted Diffuser | 220V |
| LAXPNL2X2-BACKLITE | 36W | |
3600 lm | 180° | 600 x 600, H 50 | Recessed Clear/ Frosted Diffuser | 220V |

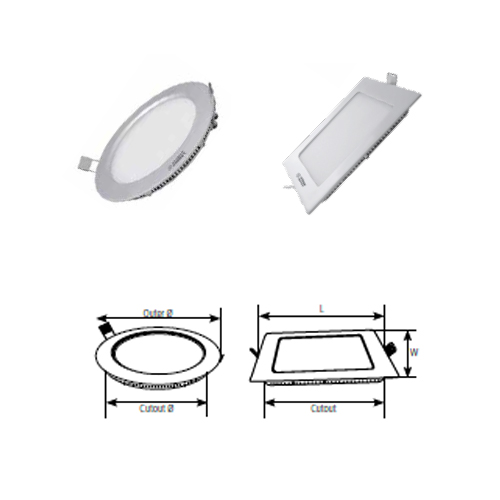

| Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions Round (mm) | Dimensions Square (mm) | Lamp Type | Voltage |
| LAXPNL06W | 6W | |
600 lm | 180° | Ø 120*, Ø100** | L120 x W120* L100 x W100** | Recessed | 220V |
| LAXPNL09W | 9W | |
900 lm | 180° | Ø 150*, Ø130** | L150 x W150* L130 x W130** | Recessed | 220V |
| LAXPNL012W | 12W/15W | |
1200 lm / 1500 lm | 180° | Ø 170*, Ø130** | L170 x W170* L150 x W150** | Recessed | 220V |
| LAXPNL015W | 15W | |
1500 lm | 180° | Ø 190, Ø170** | L190 x W190* L170 x W170** | Recessed | 220V |
| LAXPNL018W | 18W | |
1800 lm | 180° | Ø 225, Ø200* | L225 x W225* L200 x W200** | Recessed | 220V |

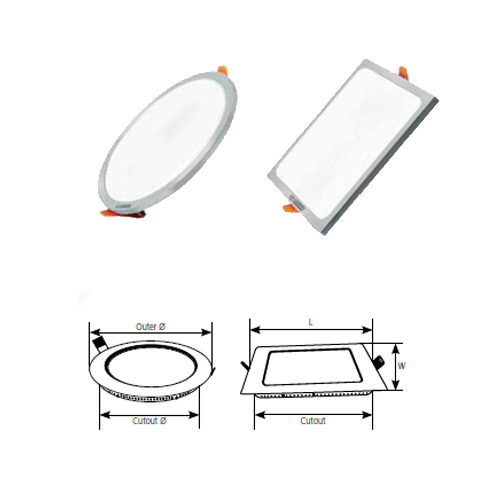

| Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions Round (mm) | Dimensions Square (mm) | Lamp Type | Voltage |
| LAXPNL08WUS | 8W | |
960 lm | 180° | Ø 90*, Ø 70** | L90 x W90* L70 x W70** |
Recessed | 220V |
| LAXPNL15WUS | 15W | |
1800 lm | 180° | Ø 127*, Ø 102** | L127 x W127* L102 x W102** |
Recessed | 220V |
| LAXPNL20WUS | 20W | |
2520 lm | 180° | Ø 178*, Ø 153** | L178 x W178* L153x W153** |
Recessed | 220V |
| LAXPNL28WUS | 28W | |
3360 lm | 180° | Ø 230*, Ø 203** | L230 x W230* L203 x W203** |
Recessed | 220V |
