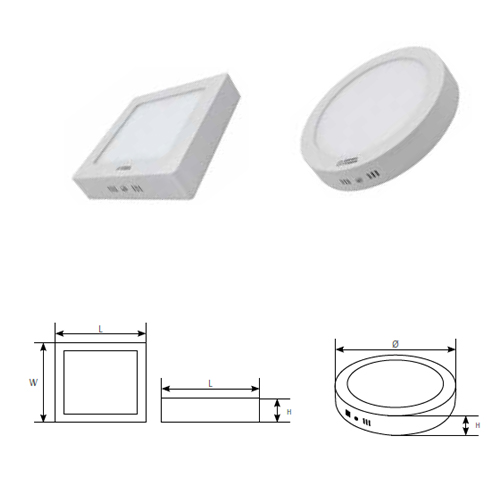

Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions Round (mm) | Dimensions Square (mm) | Lamp Type | Voltage |
LAXSM08WUS | 8W | 960 lm | 180° | Ø 90, H 20 | 90 x 90, H 20 | Surface mounted | 220V | |
LAXSM15WUS | 15W | 1800 lm | 180° | Ø 127, H 20 | 127 x 127, H 20 | Surface mounted | 220V | |
LAXSM20WUS | 20W | 2520 lm | 180° | Ø 178, H 20 | 178 x 178, H 20 | Surface mounted | 220V | |
LAXSM28WUS | 28W | 3360 lm | 180° | Ø 230, H 20 | 230 x 230, H 20 | Surface mounted | 220V |

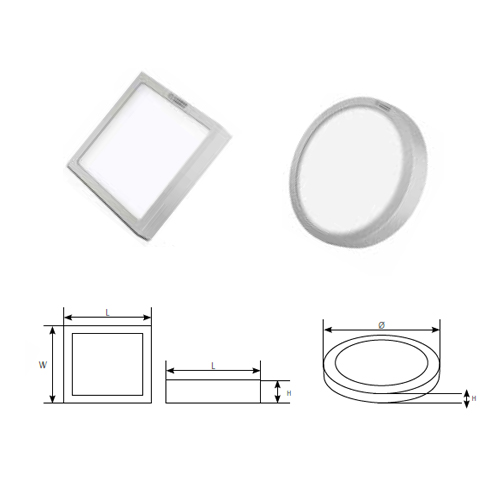

Product Code | Wattage | Color Range | Lumen | Beam Angle | Dimensions Round (mm) | Dimensions Square (mm) | Lamp Type | Voltage |
LAXSM6W | 6W | 600 lm | 180° | Ø 120, H40 | 120 x 120, H40 | Surface mounted | 220V | |
LAXSM9W | 9W | 900 lm | 180° | Ø 120, H40 | 120 x 120, H40 | Surface mounted | 220V | |
LAXSM12W | 12W | 1200 lm | 180° | Ø 170, H40 | 170 x 170, H40 | Surface mounted | 220V | |
LAXSM15W | 15W | 1500 lm | 180° | Ø 170, H40 | 170 x 170, H40 | Surface mounted | 220V | |
LAXSM18W | 18W | 1800 lm | 180° | Ø 225, H40 | 225 x 225, H40 | Surface mounted | 220V | |
LAXSM22W | 22W | 2200 lm | 180° | Ø 225, H40 | 225 x 225, H40 | Surface mounted | 220V | |
LAXSM24W | 24W | 2400 lm | 180° | Ø 300, H40 | 300 x 300, H40 | Surface mounted | 220V |
